2011 Harley Davidson FLHR Road King

2011 Harley Davidson FLHRC Road King Classic Review

2011 Harley Davidson FLHRC Road King is one motorcycle issued by the manufacturer Harley Davidson with touring edition which supported the body design is comfortable to use. 2011 Harley Davidson FLHRC Road King has a capacity of 1584 cc engine with a ratio of bore x stroke 95.3 mm x 111.3 mm. For the type of engine that is Engine4 Air-cooled, Twin Cam 96™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.

2011 Harley Davidson FLHR Road King2011 Harley Davidson FLHR Road King 1

2011 Harley Davidson FLHR Road King2011 Harley Davidson FLHR Road King 2

2011 Harley Davidson FLHR Road King2011 Harley Davidson FLHR Road King 3

2011 Harley Davidson FLHR Road King2011 Harley Davidson FLHR Road King 4

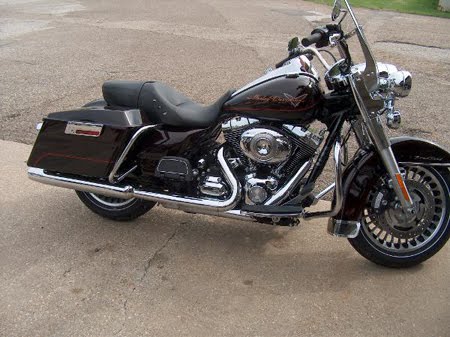

2011 Harley Davidson FLHR Road King2011 Harley Davidson FLHR Road King 5


2011
Harley Davidson FLHR Road King - USA Specifications
U.S. MSRP - Vivid Black $16,999. Solids $17,399. Two-Tones $17,769

DIMENSIONS
Length 95.0 in. (2413 mm)
Overall Width 37.4 in. (950 mm)
Overall Height 55.1 in. (1400 mm)
Seat Height:
• Laden2 26.5 in. (673 mm)
• Unladen 28.0 in. (711 mm)

Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series, bias narrow whitewall):
• Front – D408F NW 130/80B17 65H
• Rear – D407 NW 180/65B16 81H
Fuel Capacity 6.0 gal. (22.7 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
• As Shipped 775 lbs. (351.5 kg)
• In Running Order 812 lbs. (368.3 kg)
• Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
• Gross Axle Weight Rating
• Front 500 lbs. (226.8 kg)
• Rear 927 lbs. (420.5 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.593
• 2nd 6.65
• 3rd 4.938
• 4th 4.0
• 5th 3.407
• 6th 2.875

CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels5 (Chrome, Profile Laced Aluminum option): Black, 28-spoke Cast Aluminum
• Front 17 in. x 3 in. (432 mm x 76 mm)
• Rear 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type (diameter x width): Patented, fixed rotors
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4.6 in. (117 mm)
• Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 92.6 ft. lbs. @ 3500 RPM (126 Nm @ 3500 RPM)
Lean Angle:
• Right 33°
• Left 31°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel
warning, cruise control (optional), ABS (optional)

COLOR OPTIONS
Solids
• Vivid Black
• Sedona Orange
Two-Tones
• Cool Blue Pearl/Vivid Black
• Merlot Sunglo/Vivid Black

WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.

2011 Harley-Davidson FLHR Road King Canada Specifications
Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS
Metric Units
Length 2465 mm
Seat Height
Laden 1
Unladen 1 740 mm
Ground Clearance 145 mm
Rake Steering Head
Trail 170 mm
Wheelbase 1625 mm
Fuel Capacity 22.7 L
Oil Capacity 3.8 L
Weight
Dry Weight 355 kg
Running Order 368 kg
Luggage Capacity
Volume
Weight

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96™Air-cooled, Twin Cam 96™
Displacement 1584 cc
Bore x Stroke in. / in.95.3 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm123 Nm @ 3500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.594
2nd 6.65
3rd 4.939
4th 3.999
5th 3.407
6th 2.875

WHEELS / TIRES
Wheels
Front 6 Black, 28-spoke Cast AluminumBlack, 28-spoke Cast Aluminum
Wheel Option 6 Chrome, Profile Laced AluminumChrome, Profile Laced Aluminum
Rear 6 Black, 28-spoke Cast AluminumBlack, 28-spoke Cast Aluminum
Tire Size
Front
Rear

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator lightTank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
Indicator Lamps 7 High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

CHASSIS
Brakes 32 mm, 4-piston fixed front and rear32 mm, 4-piston fixed front and rear
Parking Brake
Lean Angle
Exhaust System Chrome, 2-1-2 dual exhaust with tapered mufflersChrome, 2-1-2 dual exhaust with tapered mufflers

COLOR OPTIONS
Vivid Black
Sedona Orange
Merlot Sunglo / Vivid Black
Cool Blue Pearl / Vivid Black

1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
